| Description | Details |
|---|---|
| Grades | 201, 202, JT, 304, 316, 3044, 3164, 321 |
| Size | 10 mm x 10 mm to 150 mm x 150 mm |
| Thickness | 0.38 mm to 3.00 mm |
| Finish | Matt, Mirror, 2B, No.4 Finish |
| Length | As per customer requirement |

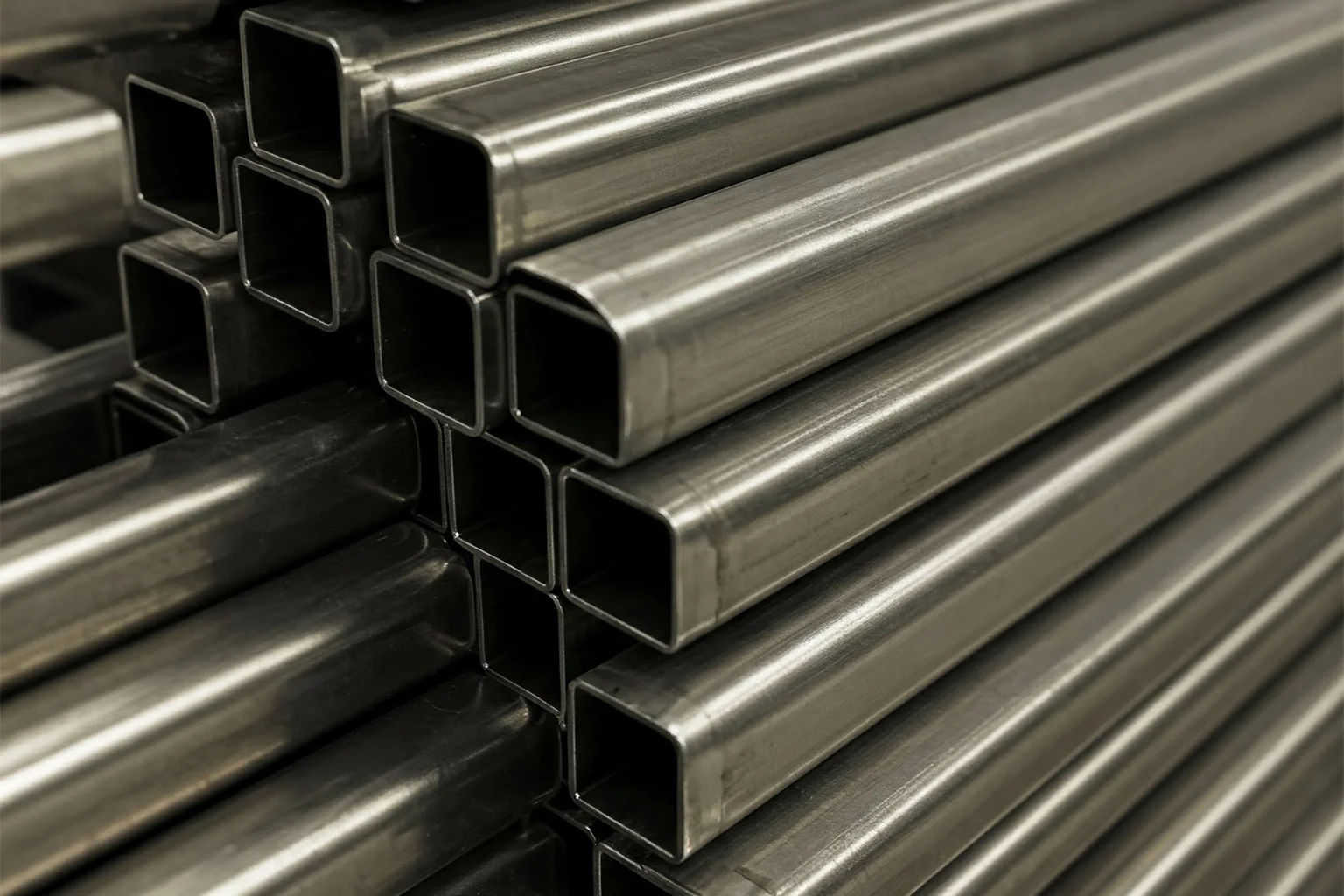

Stainless Steel Square Pipe
Our Stainless Steel Square Pipe offers excellent corrosion resistance, strength, and durability. Ideal for industrial, construction, and architectural applications, it delivers a clean, modern aesthetic with superior structural stability in both indoor and outdoor environments.
Key Features:
- Exceptional Corrosion Resistance: Built to withstand moisture, chemicals, and harsh weather conditions, making it ideal for both indoor and outdoor use in demanding environments.
- Superior Structural Strength: The square profile provides enhanced load-bearing capacity and rigidity, perfect for frameworks, supports, and structural applications.
- Versatile Installation: Flat surfaces allow for easier joining, mounting, and alignment in construction projects, making it ideal for precise fabrication work.
- Multi-Purpose Applications: Perfect for use in frameworks, railings, furniture manufacturing, architectural elements, and industrial equipment construction.
- Durable and Low Maintenance: Manufactured using high-quality stainless steel to deliver a long service life with minimal maintenance even in challenging environments.
The Stainless Steel Square Pipe from Premier reflects our dedication to quality and precision, delivering a corrosion-resistant, structurally sound solution ideal for modern construction, industrial frameworks, and contemporary architectural designs.
Stainless Steel Pipes Weight Chart
This comprehensive weight chart provides specifications for round, square, rectangular, and oval stainless steel pipes across various dimensions and thicknesses. Use this reference to determine the appropriate pipe specifications for your project requirements.
| Wall Thickness | Weight in Kg. | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | Square | Rectangle | 2.00 GAUGE 14 |
1.50 GAUGE 16 |
1.20 GAUGE 18 |
0.95 GAUGE 20 |
0.80 GAUGE 22 |
0.60 GAUGE 24 |
0.50 GAUGE 25 |
0.40 GAUGE 26 |
||
| 3/8 | 9.50 | - | - | - | 1.50 | 1.20 | 1.10 | 0.80 | - | - | - | ||
| 1/2 | 12.70 | 10x10 | - | 2.50 | 2.10 | 1.70 | 1.40 | 1.10 | 0.92 | - | - | ||
| 5/8 | 15.88 | 12x12 | 10x15 | 3.30 | 2.70 | 2.10 | 1.80 | 1.40 | 1.16 | - | - | ||
| 3/4 | 19.05 | 15x15 | 10x20 & 6x23.5 | 4.00 | 3.20 | 2.60 | 2.20 | 1.70 | - | - | - | ||
| 7/8 | 22.23 | - | - | 6.10 | 4.70 | 3.80 | 3.00 | 2.55 | 1.95 | - | - | ||
| 1 | 25.40 | 20x20 | 13x26 | 7.10 | 5.40 | 4.40 | 3.50 | 3.00 | 2.20 | - | - | ||
| 11/8 | 28.58 | - | 15x30 | 8.00 | 6.13 | 4.96 | 3.96 | 3.36 | 2.53 | - | - | ||
| 11/4 | 31.75 | 25x25 | 10x40 | 9.00 | 6.90 | 5.50 | 4.40 | 3.70 | - | - | - | ||
| 11/2 | 38.10 | 30x30 | 20x40 & 10x50 | 10.90 | 8.30 | 6.70 | 5.30 | 4.50 | - | - | - | ||
| 2 | 50.80 | 40x40 | 26x52 | 14.80 | 11.20 | 9.00 | 7.20 | 6.00 | - | - | - | ||
| 21/2 | 63.50 | 50x50 | 25x75 & 35x65 | 18.60 | 14.10 | 11.30 | 9.00 | 7.60 | - | - | - | ||
| 3 | 76.20 | 60x60 | 40x80 | 22.40 | 16.90 | 13.60 | 10.80 | 9.10 | - | - | - | ||
| 31/2 | 79.38 | - | 25x100 | 23.30 | 17.70 | 14.20 | 11.20 | 9.50 | - | - | - | ||
| 33/4 | 95.25 | - | 50x100 | 28.20 | 21.20 | 17.00 | 13.50 | 11.40 | - | - | - | ||
| 4 | 101.60 | 80x80 | - | 30.10 | 22.70 | 18.20 | 14.43 | - | - | - | - | ||
| 5 | 127.0 | 100x100 | - | 37.70 | 28.40 | 22.80 | - | - | - | - | - | ||
| Oval | 13x26 | 13x33 | 15x30 | - | 5.40 | 4.40 | 3.50 | 3.00 | - | - | - | ||
| 11/2 N.B | 48.30 | 25x50 | - | 13.80 | 10.30 | 8.40 | 6.30 | 5.60 | - | - | - | ||
Note: Tube Length will be 20 feet long. Weight Formula (OD-TH)*TH*0.2475*6.0 = Weight Per Length (All Dimensions are in MM)
